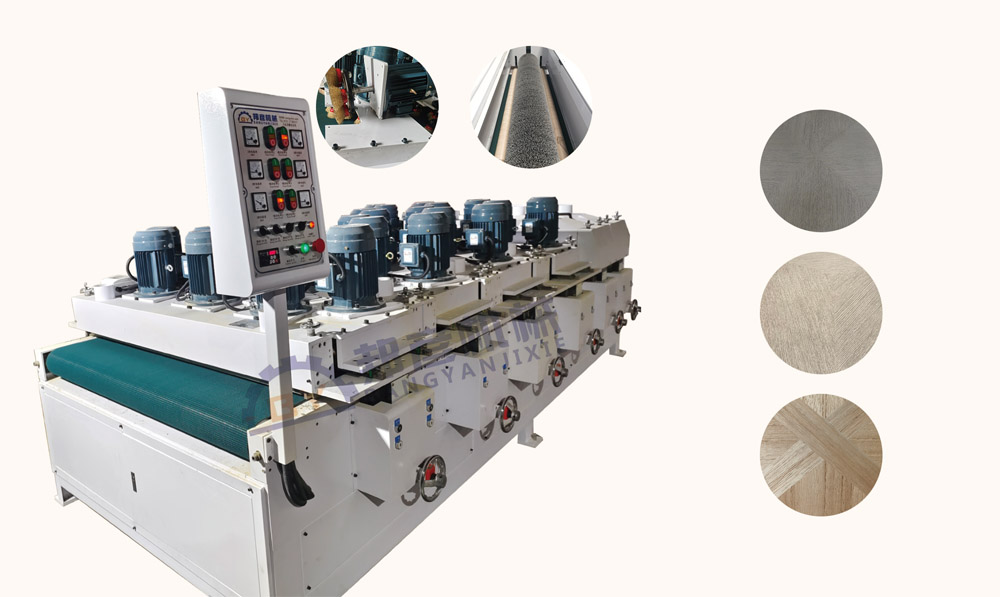

拉丝机
WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY8P-1320
- 工作宽度 Working width
- 1320mm
- 加工厚度 Working thickness
- 3-120mm
- 输送速度 Feeding speed
- 1-20m/min
- 总功率 Total power
- 78KW
- 升降方式 Up-down
- 自动升降
- 机械尺寸 Machine dimension
- 4600*2700*1700

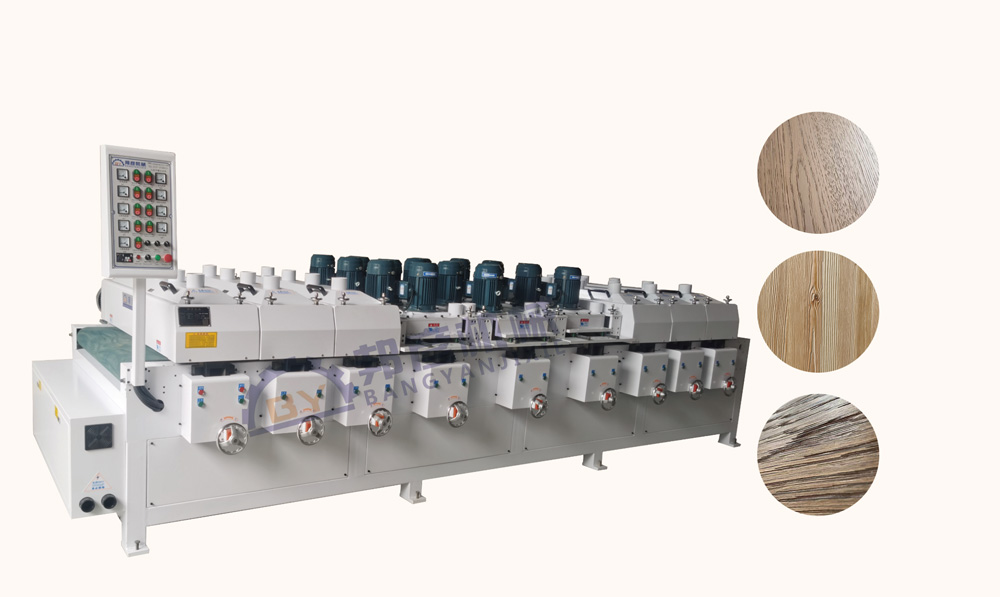

拉丝机
WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY6P-1320
- 工作宽度 Working width
- 1320mm
- 加工厚度 Working thickness
- 3-120mm
- 输送速度 Feeding speed
- 1-20m/min
- 总功率 Total power
- 70KW
- 机械尺寸 Machine dimension
- 4200*260*1700

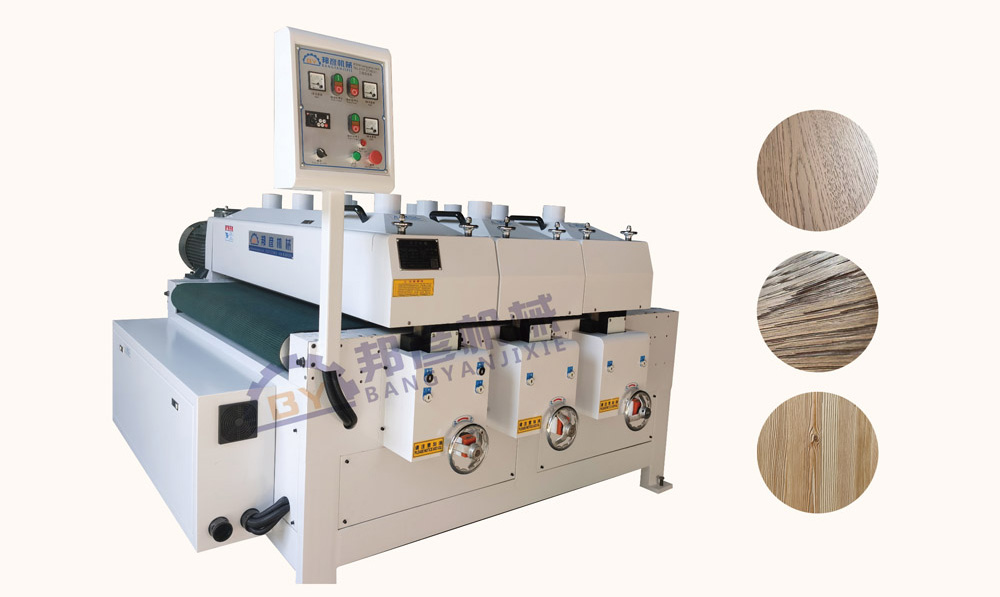

拉丝机
WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY3P-1320
- 工作宽度 Working width
- 1320mm
- 加工厚度 Working thickness
- 3-120mm
- 输送速度 Feeding speed
- 1-20m/min
- 总功率 Total power
- 24KW
- 升降方式 Up-down
- 自动升降
- 机械尺寸 Machine dimension
- 2000*2450*1700

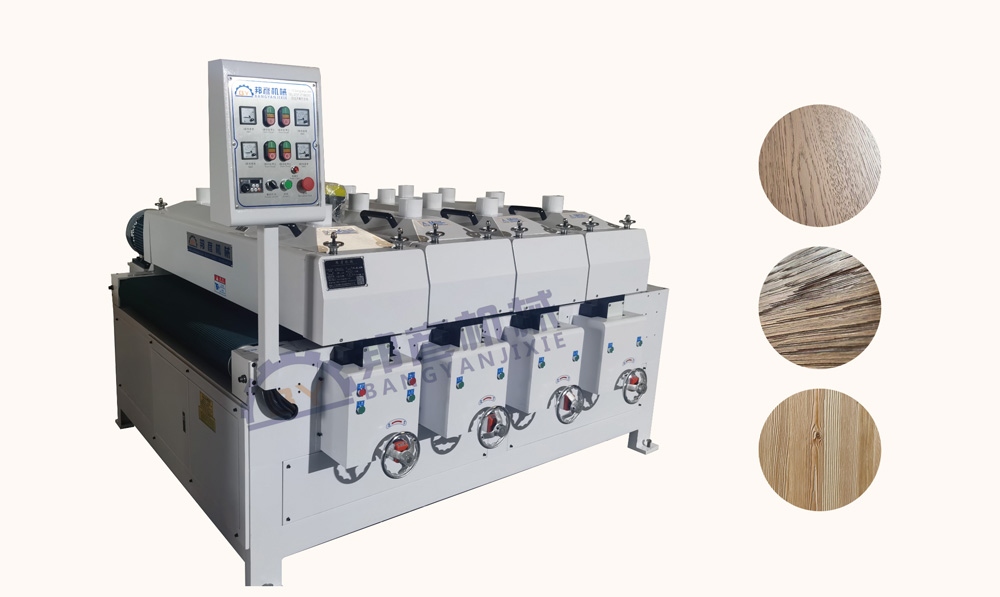

拉丝机
WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY4P-1320
- 工作宽度 Working width
- 1320mm
- 加工厚度 Working thickness
- 3-120mm
- 输送速度 Feeding speed
- 1-20m/min
- 总功率 Total power
- 30KW
- 升降方式 Up-down
- 自动升降
- 机械尺寸 Machine dimension
- 2350*2700*1700

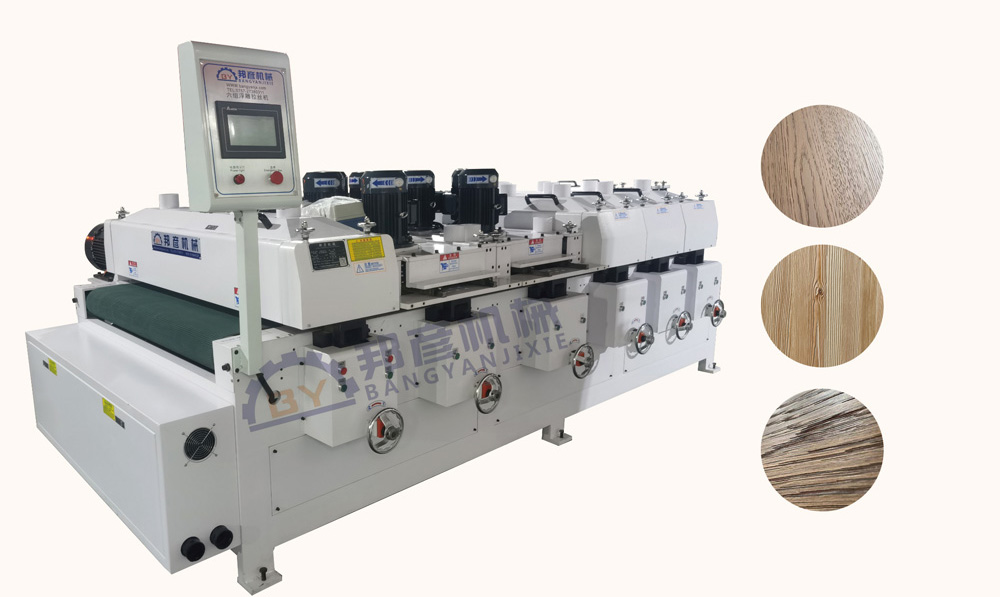

拉丝机
WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY6P-1320
- 工作宽度 Working width
- 1320mm
- 加工厚度 Working thickness
- 3-120mm
- 输送速度 Feeding speed
- 1-20m/min
- 总功率 Total power
- 58KW
- 升降方式 Up-down
- 自动升降
- 机械尺寸 Machine dimension
- 3700*2700*1700

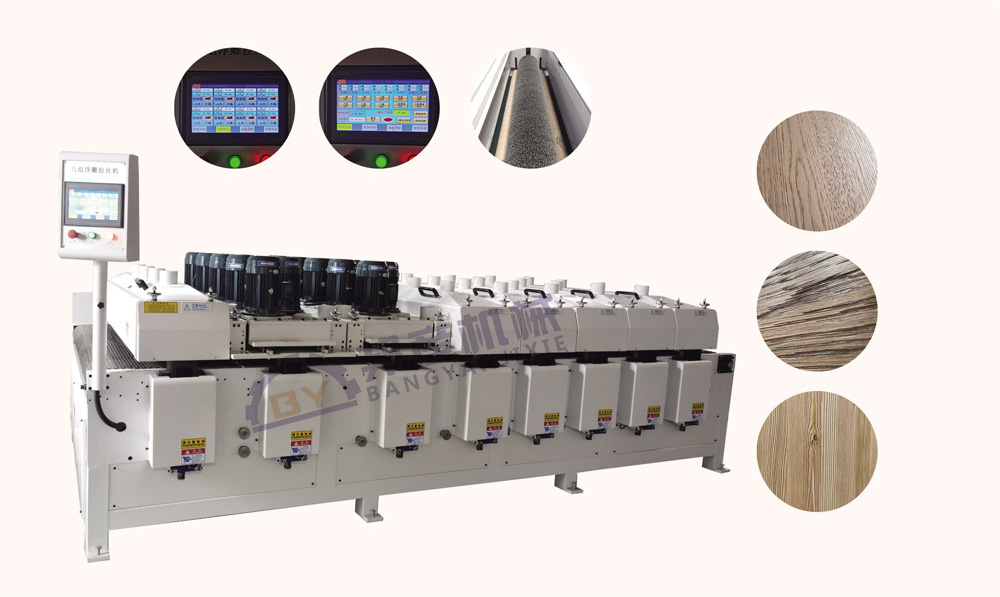

拉丝机
WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY9P-1320
- 工作宽度 Working width
- 1320mm
- 加工厚度 Working thickness
- 3-120mm
- 输送速度 Feeding speed
- 1-20m/min
- 总功率 Total power
- 83KW
- 升降方式 Up-down
- 自动升降
- 机械尺寸 Machine dimension
- 5050*2700*1700

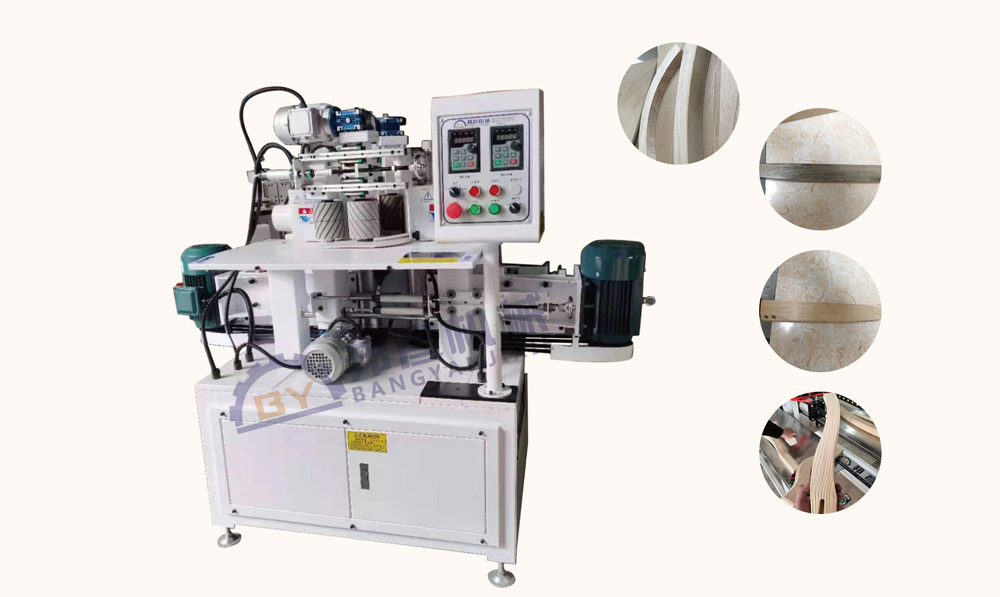

异型拉丝机
PROFILED WIRE DRAWING MACHINE
用途与特征 Purpose
本设备适用于家具、地板、装饰板、科技木等板材表面仿古浮雕拉丝处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment suited for furniture,floor,veneer,decoratedboard doing surface brush sanding, After use this machine the board has strongly stereo feeling.
浮雕深度可自行调控，满足客户不同的效果需求。
This equipment's embossment depth can adjust by itself, and can satisfied with different customer different demands;
输送速度采用变频调速。
Convey speed can be adjust by transducer.
- 产品型号 Model
- BY-2P200
- 工作宽度 Working width
- 200mm
- 加工厚度 Working thickness
- 3-150mm
- 输送速度 Feeding speed
- 1-12m/min
- 总功率 Total power
- 6KW
- 机械尺寸 Machine dimension
- 1700*750*1800
